Rig Model Download 1 - Basic Frame

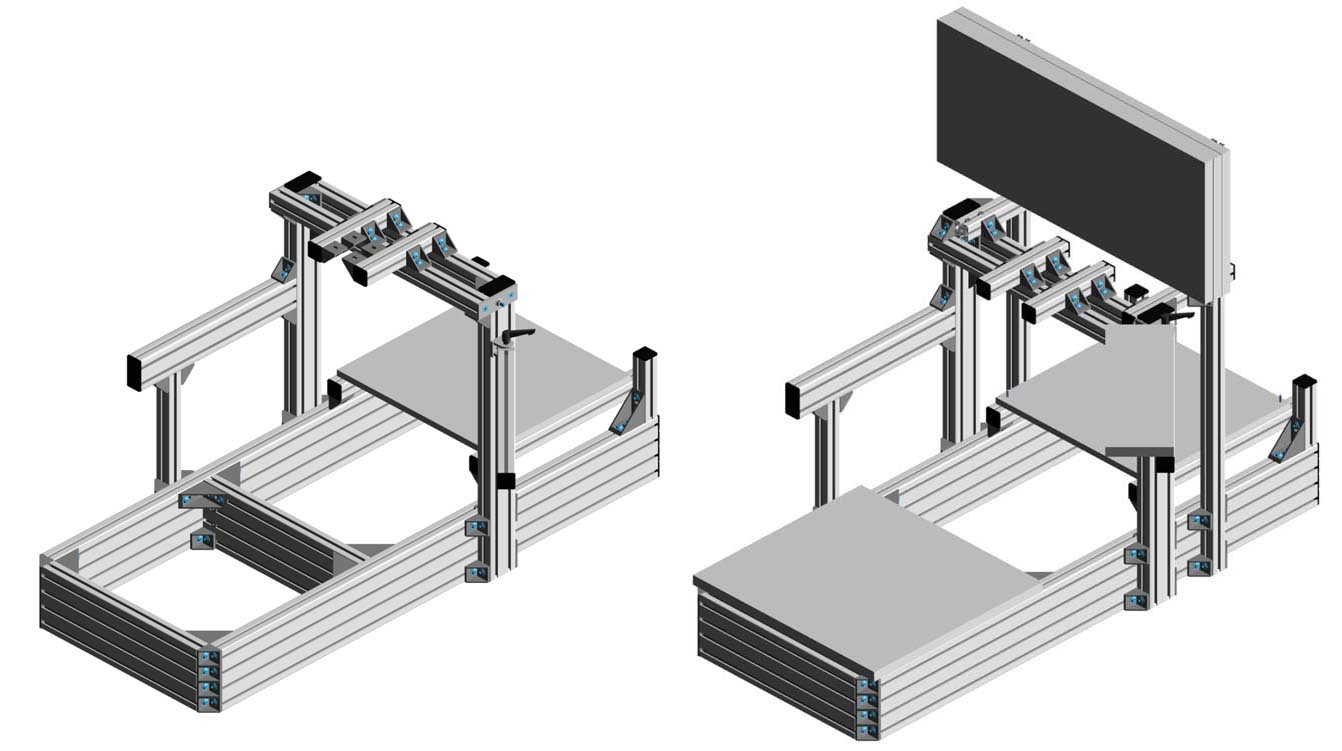

This is the exact spec to which I built my sim rig frame. I designed this with adjustability and simplicity in mind, but obviously I also wanted it to look pretty cool. Feel free to download and use this model for your own personal use. Get your local extrusion supplier to cut your 8020 to length and build your own rig. You are not permitted to sell this design.
Note, this .scene file is for use with FrameXpert MayTec software, download link below.

Rig 3D design download: CLICK HERE
sim rig basic

Rig Model Download 2 - Integrated Monitor Stand

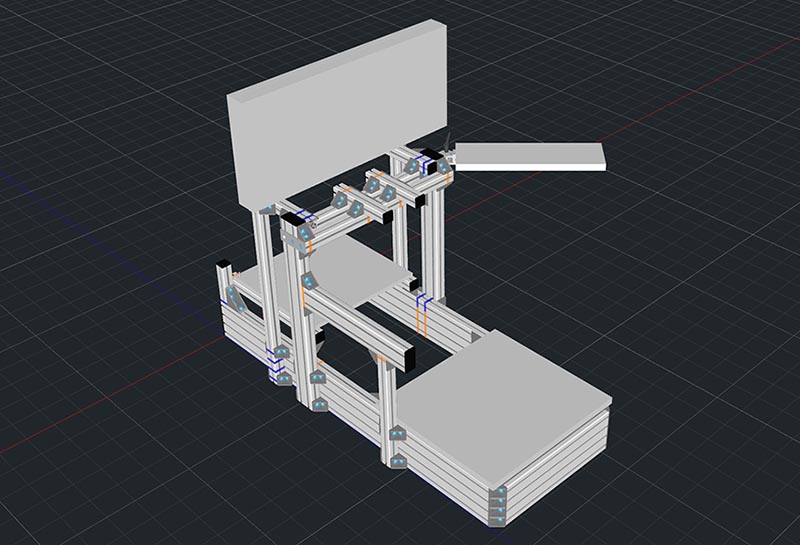

This updated model, not shown on YouTube, is my futre proof-eqsue design that includes an adjustable integrated monitor stand. And don't worry, this rig is so stiff and strong that there's zero fear of any flex or wobble in the monitor stand from the forces excerted through the wheel and pedals.
Note, this monitor stand expansion has not been tested in real life, as I didn't have the funds in the budget to warrant the extra material cost.
Note, this .scene file is for use with FrameXpert MayTec software, download link below.

Rig 3D design download: CLICK HERE
sim rig monitor

FrameXpert MayTec

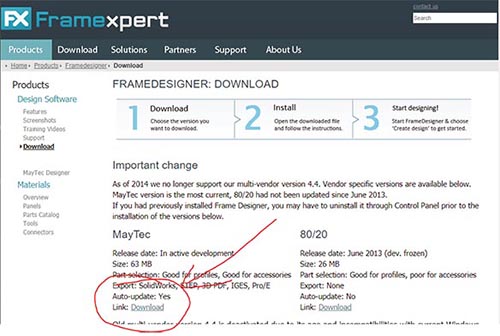

The FrameXpert MayTec software is purpose built for '8020' extrusion design in 3D CAD. I've included a link direct to their webpage where you can download the software for your own personal use. I have no affiliation or financial involvment in this software, it just worked well for helping me design my rig.

Software download: CLICK HERE
rig design software
